L.J.SMITH & SON
Microscope Repairs, Service & Sales
3 Aldgate Close, Potton Beds, SG19 2RU,
Telephone:- 01767 260295
As From Jan 2023 the Fax is disconnected
e-mail:- service@microscope-repairs.co.uk
We repair and service microscopes of all makes for Schools, Colleges, Veterinary Surgeons, Industry, Asbestos Analysis companies and for the private hobbyist etc. Our Company has been in business since 1960 and is CLEAPSS listed. Our work is of a high standard and comes highly recommended by our customers who have been with us for many years. We will be pleased to supply a free quotation to service and repair your microscopes, please contact us as above.
We service all makes of microscopes.

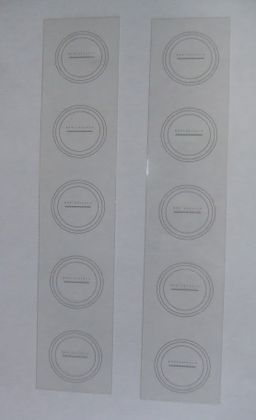

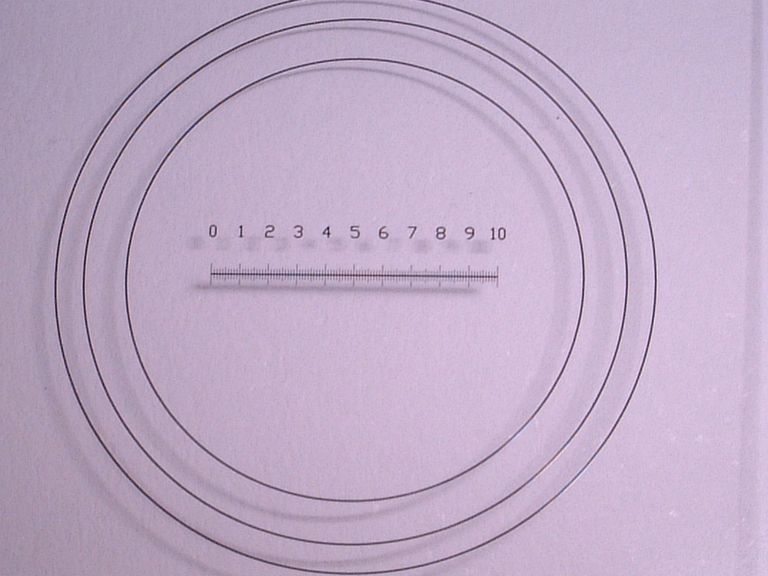

Plastic Graticules
Two strips of five graticules per pack.
Horizontal Micrometer 10mm with 0.1mm sub divisions.
The rings are 16mm, 19mm, 21mm diameter, as cutting guides
Pack of Graticules as above @ £20.00 per pack
All above prices Plus P & P, Plus VAT

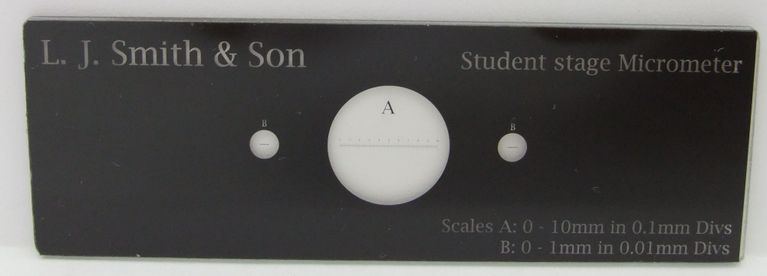

The Stage Micrometer
Student Stage Micrometer as below @ £32.00 each
A = 1cm into 100 division, B = 1mm into 100 divisions.
Eyepieces with Graticules
Widefield eyepiece fitted with above graticule @ £34.50 each
Huygenian eyepiece fitted with above graticule @ £23.50 each

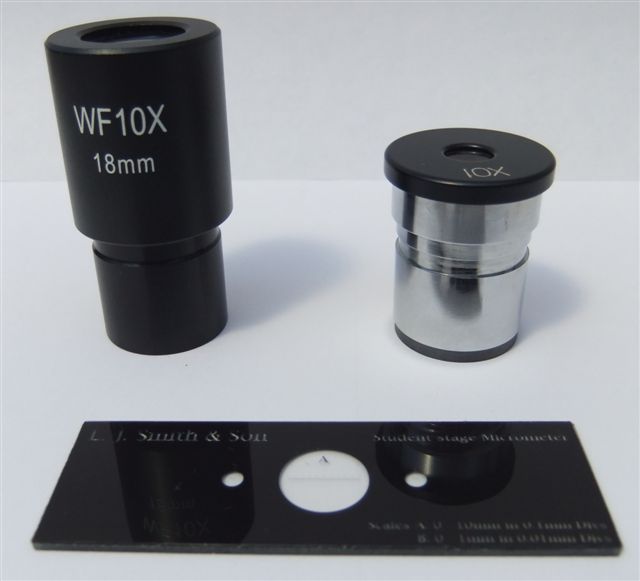

Eyepieces and Stage Micrometers
Huygenian eyepiece fitted with graticule and Student Micrometer @£ 53.60
Widefield eyepiece fitted with graticule and Student Stage Micrometer @ £64.50
All above prices Plus P & P, Plus VAT

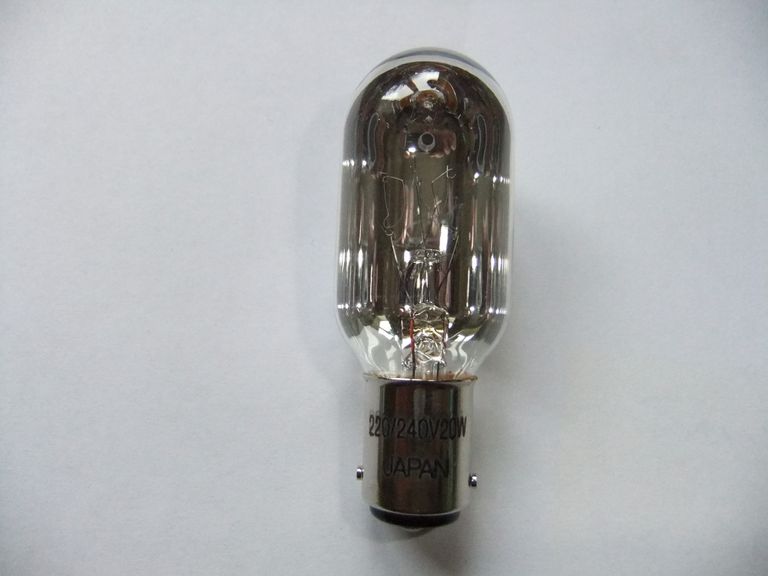

WE SUPPLY MANY TYPES OF BULBS
We now have stock of 240v 20w & 30w as in the picture
@ £18.98 each, Plus P & P, Plus VAT
Recommended for Asbestos Analysis

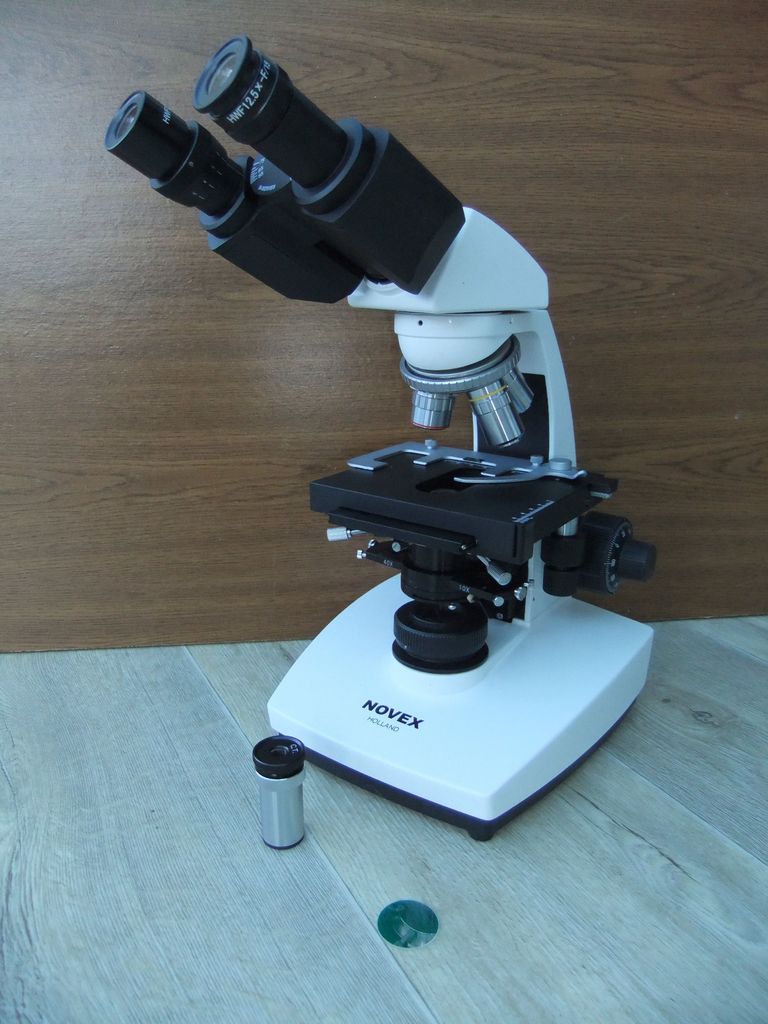

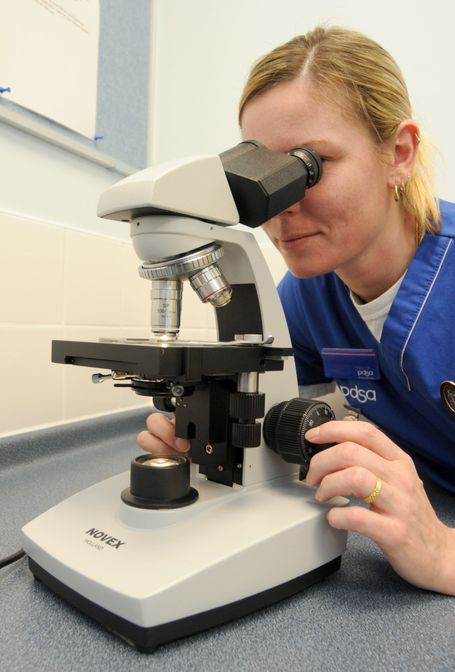

Novex BBS Phase Binocular Microscope,
Pair of 12.5 x eyepieces one fitted with Walton & Beckett type 22 Graticule,
x4, 10x, 40x Phase objectives,
Slider Phase abbe condenser with centering and iris,
Coarse and Fine focusing,
X-Y Mechanical stage,
Variable halogen illumination,
Field iris,
Telescope for centering the phase system,
Green filter

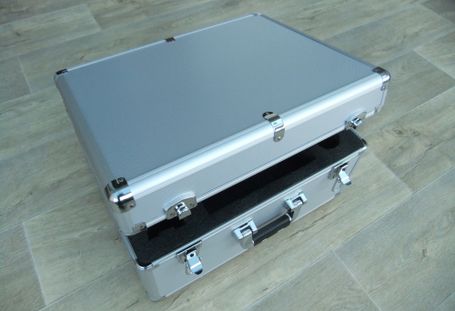

Luxury, Foam-lined Case as picture below.
Optional Extras :-Rubber Eye cups,
“approved by McCrone UK for asbestos fibre
counting analysis”

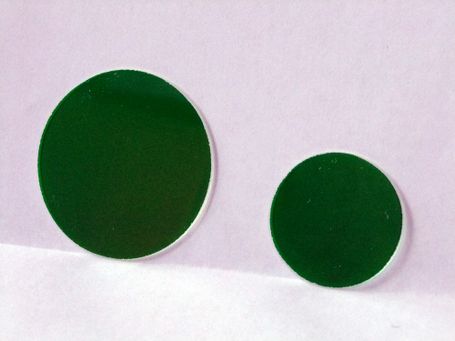

We also stock dichroic green filters as below
44.7 mm Diameter, 1.1mm thick
29.8 mm Diameter, 1.1mm thick
For Asbestos Analysis

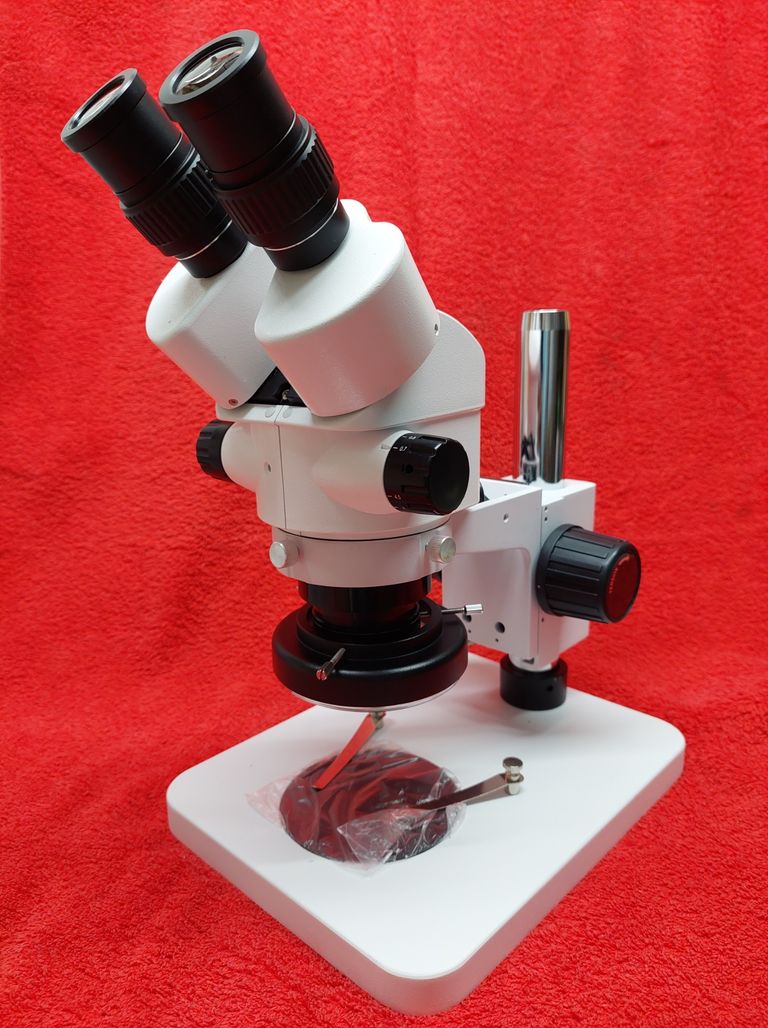

Stereo Zoom With LED Ringlight.
Binocular stereo zoom microscope StereoBlue, 0.7x to 4.5x zoom objective, magnification from 7x to 45x.
Ring illuminator with 72 LEDs with adjustable light intensity. External power supply 110- 240 Vac / 12 Vdc (50/60 Hz). With segment controller. Brightness of 21,000 Lux at 100 mm distance and colour temperature of 6500 K. Mounting for stereo head with diameter from 25 to 61 mm

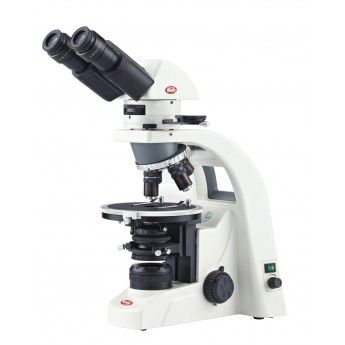

Polarising Microscope for Asbestos Analysis
“approved by McCrone UK and ABP for asbestos analysis”
PLM binocular microscope
BA310 POL Stand, Binocular head Siedentopf type 30° inclined 2 x Widefield high eyepoint eyepiece WFPL10X/20mm with diopter adjustment on both eyepieces, cross hair on one eyepiece Intermediate tube with rotatable analyzer 360º and Bertrand lens Reversed quadruple nosepiece, single positions centerable CCIS EF Plan Strain-free objective 10x, power cord, allen key, vinyl dust cover Koehler illumination quartz halogen 6V/30W with intensity control, CE.
λ Plate (1st order red tint plate) DSO 10x (EC Plan objective) Achromat swing-out condenser N.A. 0.90/0.13 (strain-free) Rotatable polariser, fixed on condenser carrier
